Easy for hand-held, portable
Lightweight 540g, size suitable for handheld operation. Leather texture anti-slip design is easy to operate with one hand and disposable Humming Probe pH electrode (learn more)is portable without protection.
What's Include ?

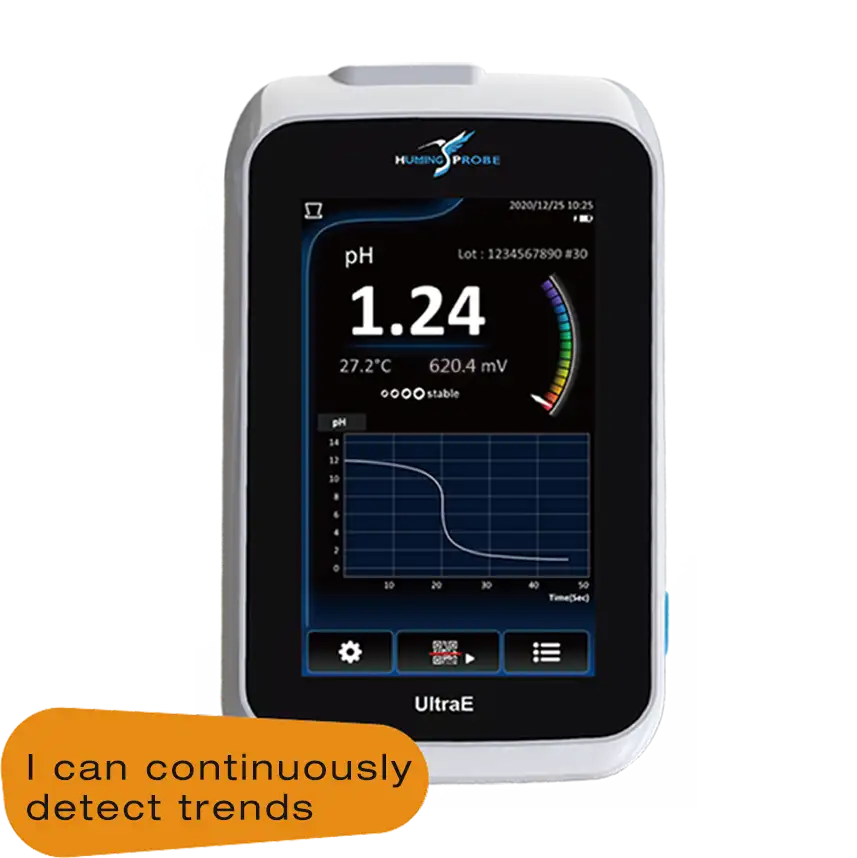

UX200-pH Meter
In addition to all the functions of the UX100, the UX200 has an added pH/potential trend recording curve, and the potential resolution has been improved to 0.1 mV. The end point of acid-base titration can be more accurately determined. Meets the need for continuous or frequent recording of pH changes. Users do not need to stay beside the instrument to continuously record data, and the pH changes at each time point can be retraced during the experimental stage at any time.
Prepare buffer solution
Acid-base titration curve
Electroplating
pH control
Wastewater Discharge
Detection
Aquaculture Water
Quality Control
With 7 inch of full color touch screen and clear graphic menu that are intuitive to doing the measurement the right away.
Generally, the final pH value is determined from when the measured value stops fluctuating on the traditional pH meter. The UX100 uses an intelligent end point identification function (Auto read) and an algorithm to automatically determine the results, which can display the measurement results faster and more accurately, reducing human error.
The Humming Probe contains built-in simulate electrodes for self-checking and validating and will conduct comprehensive self-checking every time it is turned on to eliminate the possibility of system errors.
Dip the pH strip in the sample solution or drop the sample on the pH strip
then insert the pH strip into the pH Meter for pH detection.
Strip port can be extended by cable socket that is similar to traditional pH meter measurement.
The color monitor is large and clear, so you can find relevant information at a glance. The 350 cd/m2 brightness LCD screen with backlight allows you to read results or browse menus in direct sunlight or in dark areas.
The built-in high-efficiency rechargeable battery can be used for several hours after charging, which can meet various mobile detection needs for laboratories or outdoor environments without power system.
On-site sample status and test environment can be recorded at any time.
Built-in large memory capacity for recording a large amount of live raw data (photos, documents, etc.). It can also be used as a general mobile hard disk.
The pH value for culture media or buffer solutions are usually adjusted to within 0.1 pH. Our product, the Humming Probe, is able to monitor the pH value of culture media at any time by directly insertion to make sure the cells and bacteria are growing under the correct environment.
Traditional methods of monitoring outdoor environmental pollution often require samples to be taken to the laboratory for testing. Direct on-site testing is rarely used, and it often takes a long time to detect pollution problems. The Humming Probe pH Measurement System does not require you to carry a variety of calibration solutions, only requiring the pH meter and the pH strips, to perform direct on-site testing. The test results can be obtained quickly, the testing time can be greatly shortened, and the degree of pollution can be understood immediately.
Colorimetric methods to measure are commonly used instead of traditional pH meter, due to the low volume of biomedical samples such as blood, urine, or interstitial fluid. However, colorimetric methods are often difficult to obtain accurate data. In contrast, our Humming Probe only requires 1-20 μL volume of sample to perform testing. Moreover, the Humming Probe System can be integrated with other detection sensors through customization.
The acidity and alkalinity (pH) of the soil is an important step in planting crops. The Humming Probe pH Measurement System can test soil pH directly in moist soil or using a simple water-soluble medium to assist in plant growth management or soil improvement.
In the process of producing food, pH value will affect the taste, freshness, and shelf-life of the final product. The design of the patented ionic membrane and disposable electrode of the Humming Probe pH strip can overcome the complex composition of the sample, which usually requires a pre-treatment process to accurately measure to provide accurate pH measurements for meat, fish, jam, seafood, milk, cheese, yogurt, dairy products, sauces, teas, etc.
No matter if you are doing organic, non-organic or polymer synthesis experiments, it is necessary to control the pH value in every phase under different reaction conditions. The Humming Probes pH meter can be directly dipped into small samples at different stages to obtain accurate pH values. Its disposable design can also avoid impurities on the electrodes or introducing contaminants to the system.
Most Popular
Suitable for most
testing requirements
Suitable for liquid samples
Ultra small sample requirement:
10-20 μL
Suitable for single & continuous test
New
Suitable for precious
and micro samples
Suitable for liquid samples
Ultra small sample requirement:
1-2 μL
Suitable for single & continuous test
New
Suitable for
gas samples
Suitable for gas samples
Lower limit of detection
Suitable for single & continuous test
| UX200 pH Meter | |
| Display: | 7” Color Touchscreen |
| Water Proof: | IP54 |
| Camera: | 5M Pixels |
| Power supply: | 5V DC，2A(Input 100/240V AC) |

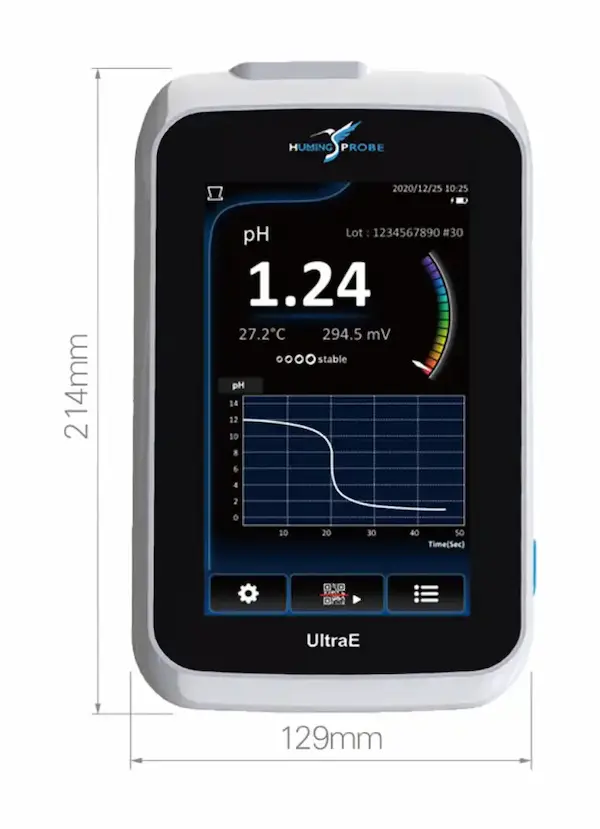

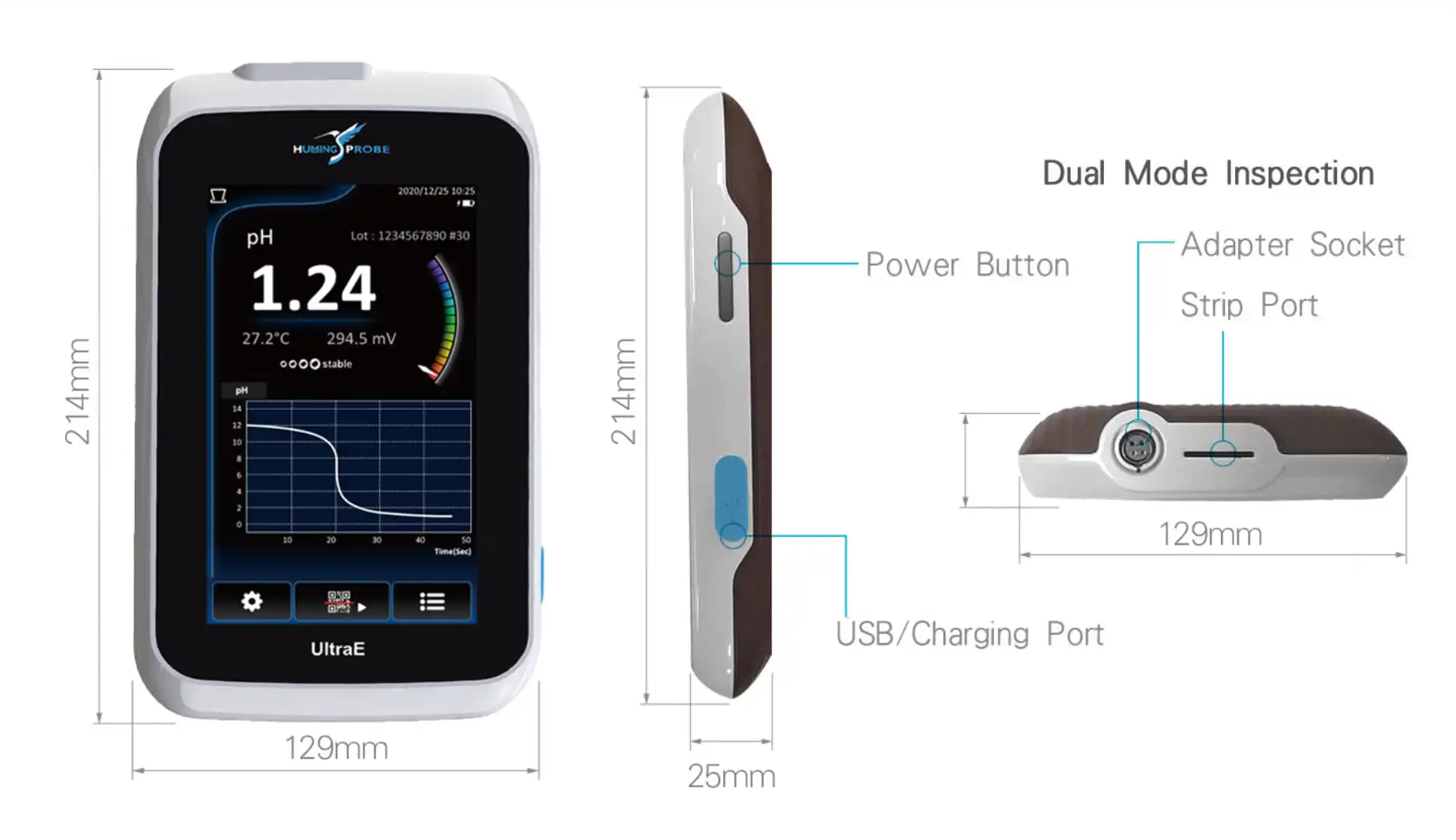

| Dimension: | 129 x 214 x 25 mm |
| Weight: | 540g |
| Range | |
| pH Value: | 0.00~14.00 pH |
| Electric Potential: | ± 1000.0 mV |
| Temperature: | 10 ~ 40°C ( 10°C or >40°C will show warning) |
| Resolution | |
| pH Value: | 0.01pH |
| Electric Potential: | 0.1 mV |
| Temperature: | 0.1 °C |
| Accuracy | |
| pH Value: | ± 0.1 pH |
| Electric Potential: | 0.05 % |
| Temperature: | ± 0.5°C |
| pH chart(For UX200) | |
| Time interval | 0.1,0.5,1,5,10 Sec |
| Max runtime | 2hr~280hr |
