Humming Probe UX150
CALIBRATION-FREE pH METER
pH meter/pH Measurement system
- Compatible with a full range of world's first calibration-free pH strip electrodes
- ・pH chart
- ・4.3” Color Touchscreen
- ・Algorithm automatic end point judgment
- ・Waterproof: IP54
- ・Dual Mode Inspection Design
- ・Built-In 5M Pixels Camera, recordable and editable data
- ・Anti-slip Leather Pattern Design
- ・Built-In Adjustable Stand
Description
Product
What's Include ?- 1.UX150: pH masurement meter (1 unit)
- 2.UH1: pH test strip electrode (10 pcs in a vial)
- 3.Strip extended connection cable (1 pc)
- 4.Charger (1 pc)
- 5.Brief user manual
- 6.Micro USB cable for charging and data transfer. (1 pc)
- 7.User manual is built inside the meter storage and can be copied to computer for reading.

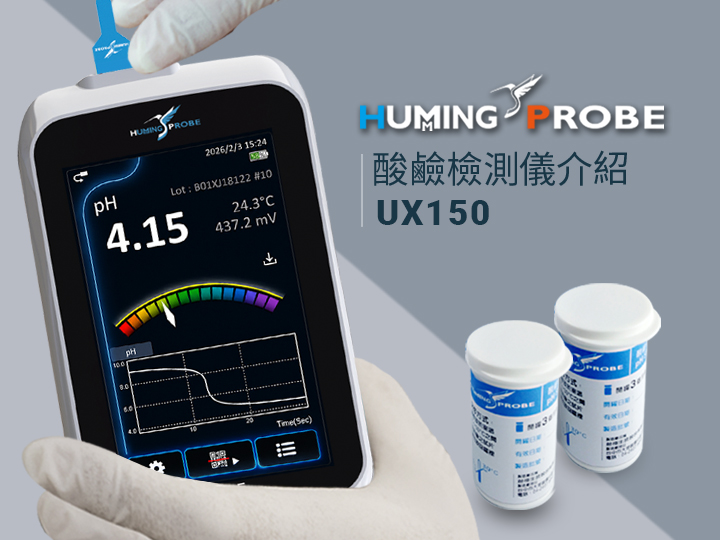

Operation

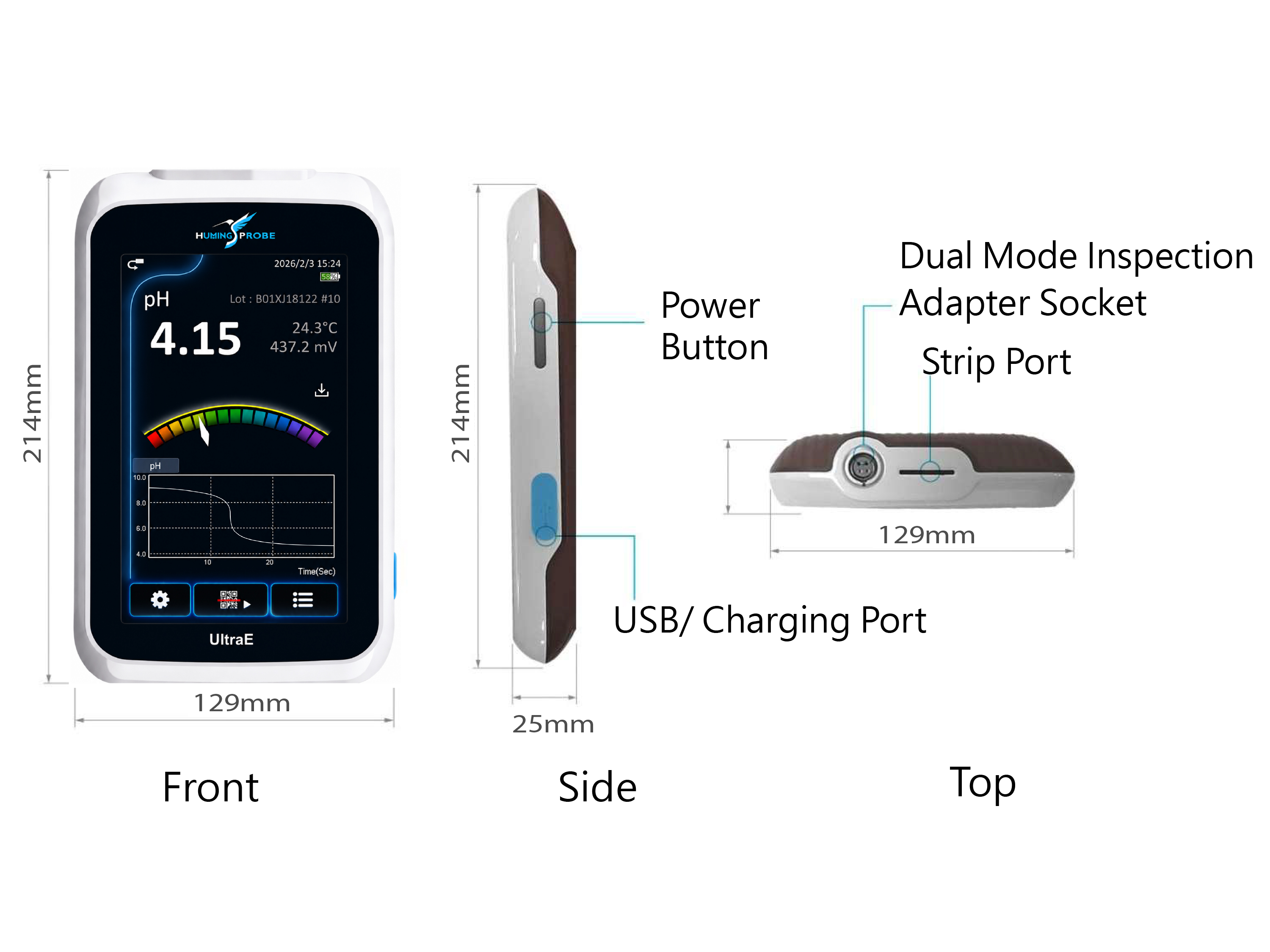

Appearance
Product
Meeting the Need for Continuous Recording
In addition to all the functions of the UX100, the UX150 has an added pH/potential trend recording curve, and the potential resolution has been improved to 0.1 mV. The end point of acid-base titration can be more accurately determined. Meets the need for continuous or frequent recording of pH changes. Users do not need to stay beside the instrument to continuously record data, and the pH changes at each time point can be retraced during the experimental stage at any time.
Acid-base titration curve
Detection
Electroplating pH control
Aquaculture Water Quality Control
Intuitive operation guide
With 7 inch of full color touch screen and clear graphic menu that are intuitive to doing the measurement the right away.

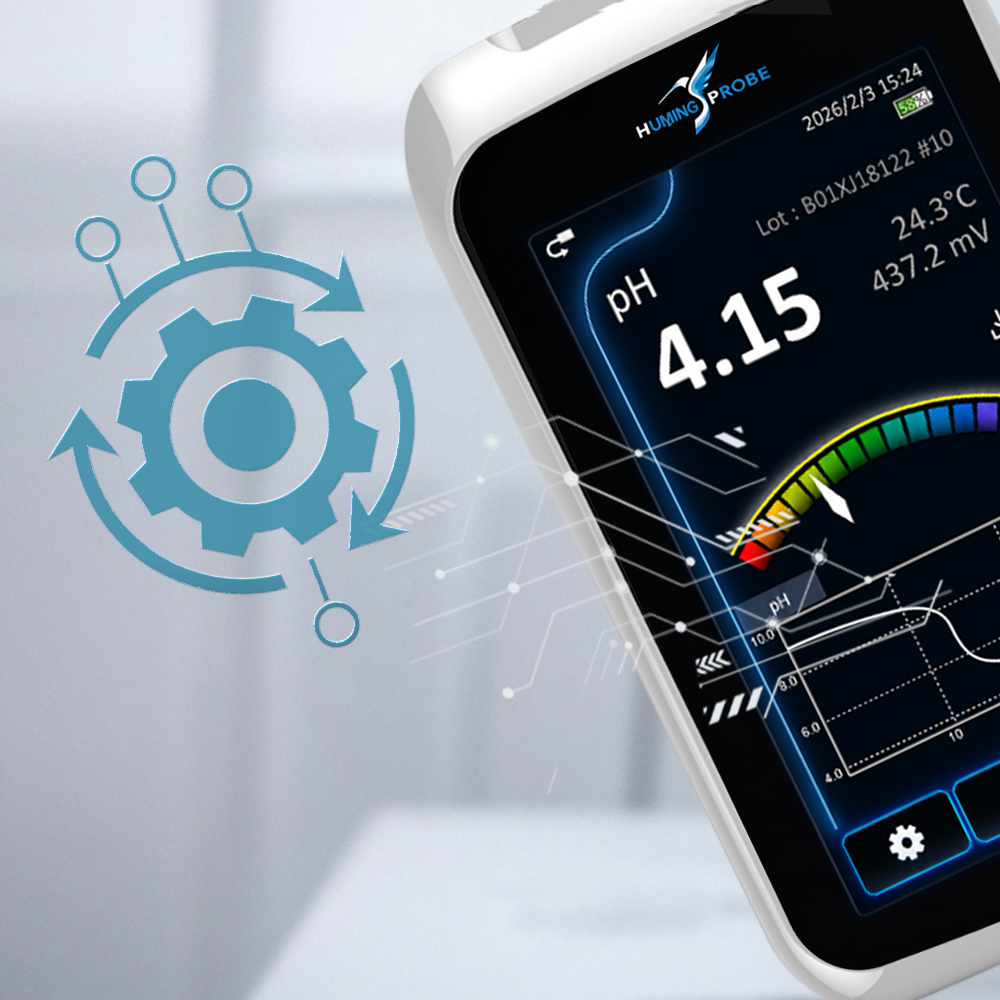

Algorithm automatic interpretation of the end point
Generally, the final pH value is determined from when the measured value stops fluctuating on the traditional pH meter. The UX100 uses an intelligent end point identification function (Auto read) and an algorithm to automatically determine the results, which can display the measurement results faster and more accurately, reducing human error.
Power-on Self-checking Calibration Make sure the reliability for every measurement
The Humming Probe contains built-in simulate electrodes for self-checking and validating and will conduct comprehensive self-checking every time it is turned on to eliminate the possibility of system errors.

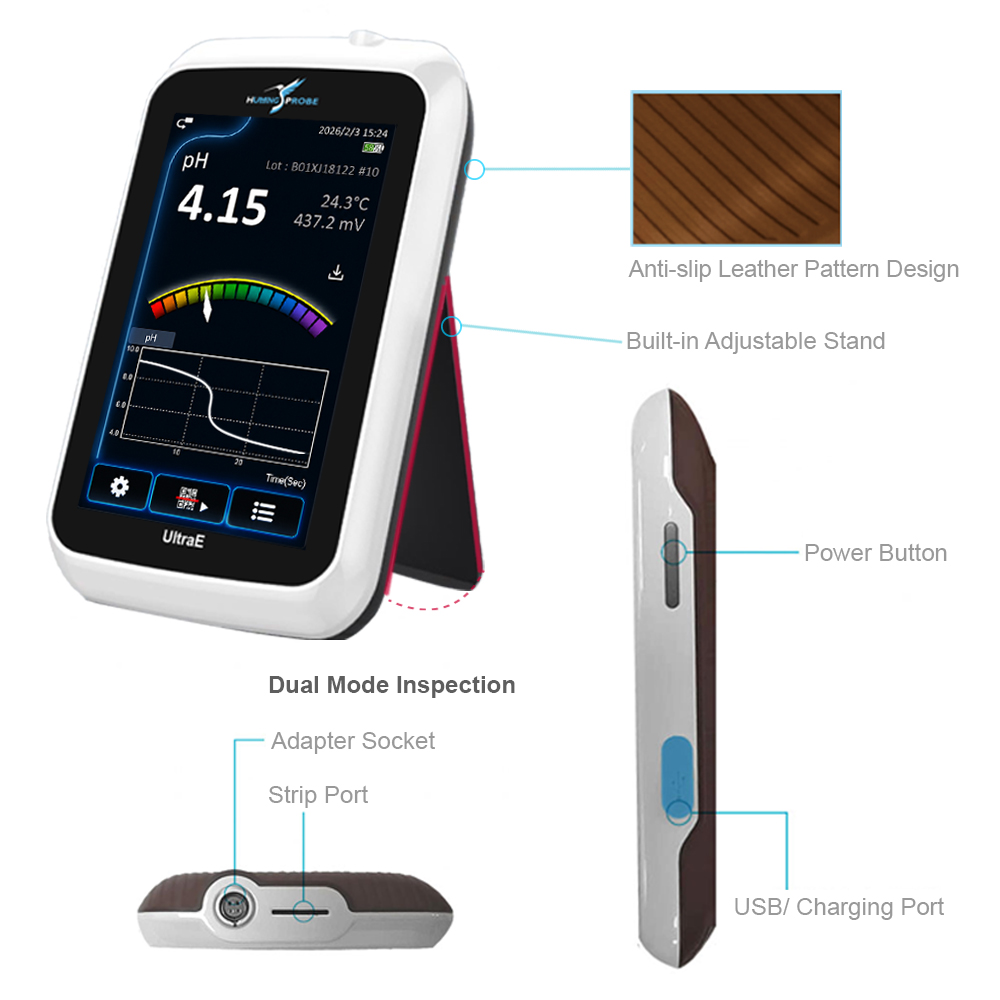

Strip Port Mode
(Strip Port):
Dip the pH strip in the sample solution or drop the sample on the pH strip then insert the pH strip into the pH Meter for pH detection.
Cable Socket Mode
(Cable Socket)
Strip port can be extended by cable socket that
is similar to traditional pH meter measurement.
Easy for hand-held, portable
Lightweight 540g, size suitable for handheld operation. Leather texture anti-slip design is easy to operate with one hand and disposable Humming Probe pH electrode (learn more)is portable without protection.
Can provide clear display in various fields
The color monitor is large and clear, so you can find relevant information at a glance. The 350 cd/m2 brightness LCD screen with backlight allows you to read results or browse menus in direct sunlight or in dark areas.
High Efficiency Rechargeable Battery System
The built-in high-efficiency rechargeable battery can be used for several hours after charging, which can meet various mobile detection needs for laboratories or outdoor environments without power system.

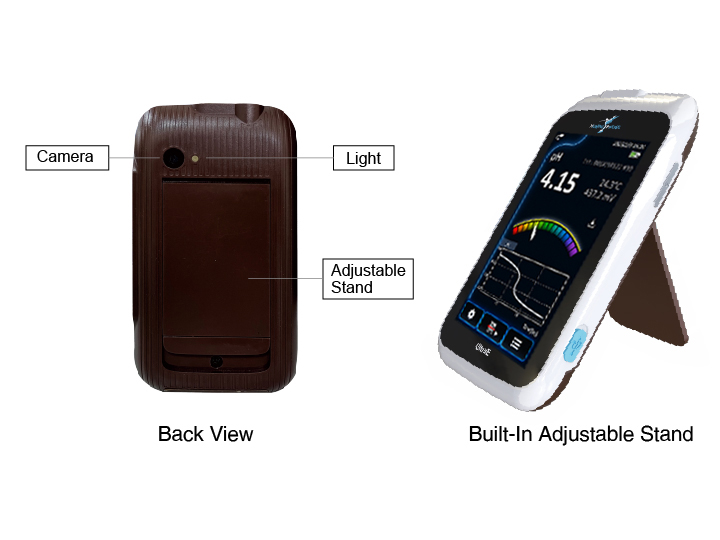

Build-in camera
On-site sample status and test environment can be recorded at any time.
Can be connected to a computer via USB
Built-in large memory capacity for recording a large amount of live raw data (photos, documents, etc.). It can also be used as a general mobile hard disk.
Easy to use with facility
Long-term continuous monitoring
Triangular Adjustable Stand
Convenient and stable fixation
IP54 waterproof and
dustproof rating
Unaffected by weather
Suitable for every application
Firm and sturdy
Optimized Mobile Laboratory
The UX150 provides a shooting function. For each data, it can take pictures to record the scene environment and the details of the sample number. Satisfy the management requirements of the source of the result analysis and the original data. Data can be easily transferred to a computer for backup
When should I use the Humming Probe
pH Measurement System?
Find your Humming Probe
Most Popular
Suitable for most
UH1 pH STRIP- Suitable for liquid samples
- Ultra small sample requirement: 10-20 μL
- Suitable for single & continuous test
New
Suitable for precious and micro samples
UH2 pH STRIP- Suitable for liquid samples
- Ultra small sample requirement: 1-2 μL
- Suitable for single & continuous test
New
Gas
Suitable for gas samples
UH2-Gas pH STRIP- Suitable for gas samples
- Lower limit of detection
- Suitable for single & continuous test
Find your meter and accessories
UX100 pH Meter
- 4.3” Color Waterproof Touchscreen
- Waterproof: IP54
- Dual Mode Inspection Design
- Built-In 5M Pixels Camera, Data Editable
UX150 pH Meter
- pH chart
- 4.3” Color Touchscreen
- Waterproof: IP54
- Dual Mode Inspection Design
- Built-In 5M Pixels Camera, Data Editable
CS200 MAGNET INVERTER MIXER
- Constant Temperature Control (20-40°C)
- Digital Speed Control/Display (400-1500rpm)
- Clockwise & Counter-Clockwise Design
- Beaker Size Range (10-500 mL)
